Staggered Dual Drag Pipes For 1970 - 1984 Shovelhead FL Models With Kick Or Electric Start

1-3/4" Staggered Dual Drag Pipes For 1970 - 1984 Shovelhead FL Models With Kick Or Electric Start
Intended for use on Shovelhead powered 4-speed FL models with kick or electric start. They clear the HD factory highway bars, but the right-side floorboard must be moved for pipe clearance (use a Paughco #734D floorboard bracket).

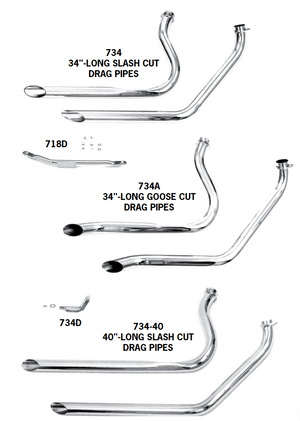

734 34"-long Slash Cut drag pipes (use Paughco #725D clamps to mount)
734A 34"-long Goose Cut drag pipes (use Paughco #725D clamps to mount)
734-40 40"-long Slash Cut drag pipes with slider channels (use a Paughco #718D hanger bracket to mount)

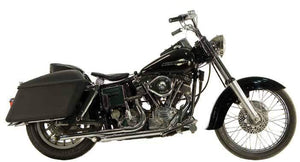

734A40 40"-long Goose Cut drag pipes with slider channels (use a Paughco #718D hanger bracket to mount) shown on bike
718D Hanger bracket for Paughco #’s 734-40 and 734A40 pipe sets
734D Floorboard adapter for Paughco #734 series pipe sets
430F Front heat shield for Paughco #734 series pipes (shown on bike)
422-1R Rear heat shield for Paughco #734 series rear pipe (shown on bike)


Special Notes:
1) Drag pipes are not recommended for use on the street.
2) See page 247 for P-clamps and frame rail clamps to install these pipe sets.
