Shovelhead Shotgun ‘S’ Pipe Sets For 1966 - 1969 Swingarm Frames

1-3/4" Shotgun ‘S’ Pipe Sets For 1966-1969 Swingarm Shovelheads

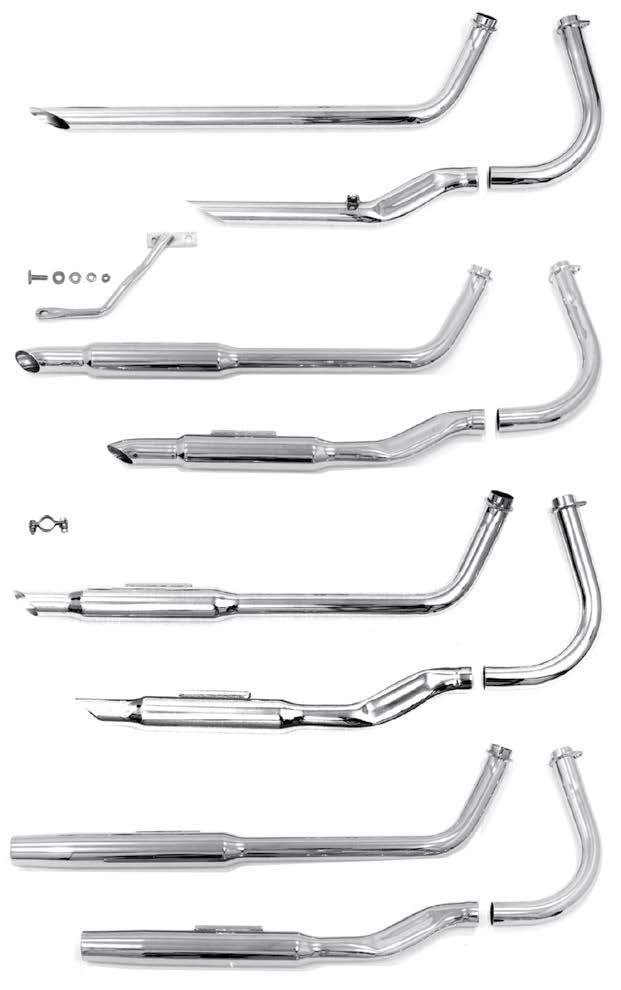

Choose from four 3-piece drag pipe and muffled exhaust systems for 1966 – 1969 Shovelhead engines in swingarm frames with kick or electric start ONLY, and a swing-out kick arm. They will not fit with the large FLH battery, and all have an inside-the-frame front ‘squish’ pipe for maximum ground clearance. All of these complete exhaust systems have slider channels, and a Paughco #523-3 hanger clamp is included with each set (except the drag pipes). Use a Paughco #718J bracket to mount the rear pipe. A heat shield is also recommended for the rear pipes.


713D1-40 40"-long Slash Cut drag pipes
713D1GM 38"-long Goose Cut muffler set
713D1M 38"-long Slash Cut muffler set
713D1TM 38"-long Tapered muffler set
523-3 Hanger clamp to mount ‘S’ pipe to frame rail on Paughco #’s 713D1GM, 713D1M and 713D1TM pipe sets

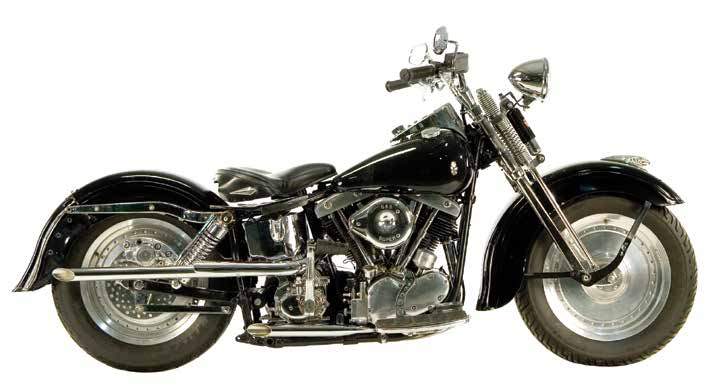

718J Rear Shotgun pipe hanger bracket for all early and late model swingarm frames (bolts to the upper shock stud and the rear strut) shown below on bike
412D1R Rear heat shield for Paughco #713D1 series pipes (shown on bike)



Special Notes:
1) Drag pipes are not recommended for use on the street.
