Shovelhead Over The Transmission Drag Pipes For 1966 - 1969

1-3/4" Over The Transmission Drag Pipes For 1966 - 1969 Shovelheads

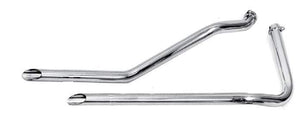

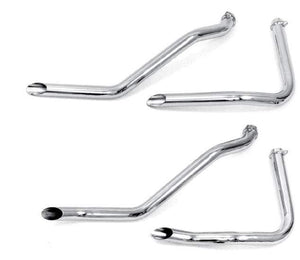

An outside the frame front pipe, and a rear pipe that routes over the transmission, bring a modern style and a throaty sound to your 1966 – 1969 Shovelhead. These systems will fit rigid or swingarm frames, but will not fit with the large FLH battery. A heat shield for the rear pipe is recommended.


724C40 40"-long Slash Cut drag pipes with slider channels
724C 34"-long Slash Cut drag pipes (Use Paughco #725D clamps to install)
724CA 34"-long Goose Cut drag pipes (Use Paughco #725D clamps to install)
424CR Rear heat shield for Paughco #724C series pipe sets (shown below on bike)



Special Notes:
1) Drag pipes are not recommended for use on the street.
2) These pipes have less ground clearance than original equipment and may scrape on hard right hand turns. Do not use these pipes unless the front end is extended at least 4" longer than stock or serious injury may result.
3) See page 247 for P-clamps and frame rail clamps to install these pipe sets.
4) See pages 349-353 for photos of the heat shields for these pipe sets.
