Panhead Shotgun ‘S’ Pipe Sets For 1958 - 1964 Swingarm Frames

1-3/4" Panhead Shotgun ‘S’ Pipe Sets For 1958 - 1964 Swingarm Frames
Choose from four 3-piece drag pipe and muffled exhaust systems for 1948–1964 Panhead engines with kick or electric start in swingarm frames ONLY (must have swing-out kicker arm to clear pipes). They will not fit with large FLH battery. All of these complete exhaust systems have slider channels, and the rear pipe mounts with a Paughco #718J hanger bracket (sold separately). A Paughco #523-3 hanger clamp is included with each set (except the drag pipes), and heat shields are recommended for the rear pipes.

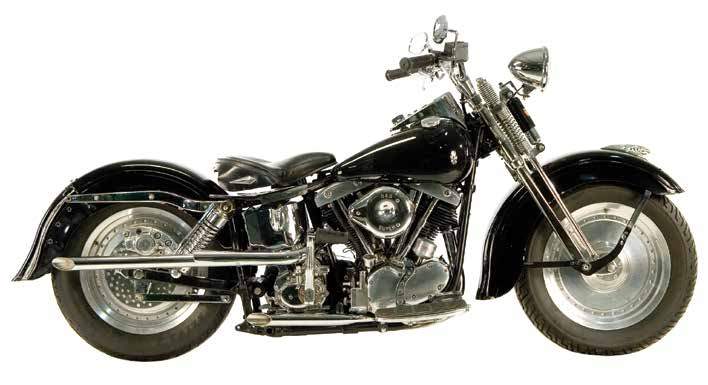

712D1-40 40"-long Slash Cut drag pipes (shown below on bike)
712D1M 38"-long Slash Cut muffler set
712D1GM 38"-long Goose Cut muffler set
712D1TM 38"-long Tapered muffler set
523-3 Hanger clamp to install ‘S’ pipe to frame rail on Paughco #’s 712D1M, 712D1GM and 712D1TM pipe sets
412D1R Rear heat shield for Paughco #712D1 series pipe sets (shown below on bike)
718J Rear pipe hanger bracket for swingarm frames (bolts to upper shock stud and rear strut)



Special Notes:
1) Drag pipes are not recommended for use on the street.
2) See page 247 for P-clamps and frame rail clamps to install these pipe sets.
3) See pages 349-353 for photos of the heat shields for these pipe sets.
