Panhead Over The Transmission ‘S’ Pipe Staggered Duals For 1948 - 1964

1-3/4" Panhead Over-The-Transmission ‘S’ Pipe Staggered Duals For 1948 - 1964

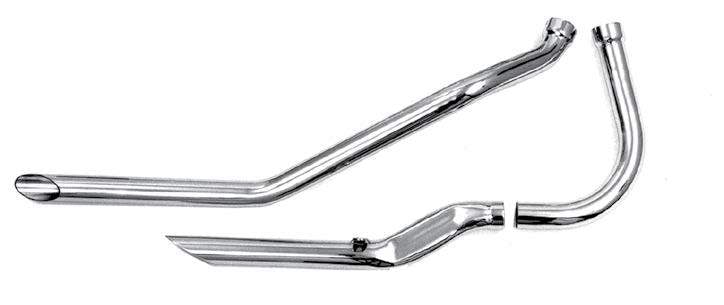

These 3-piece complete exhaust systems feature an inside-the-frame front ‘squish’ pipe, and an over the transmission rear pipe to blend nostalgic and contemporary looks on your Panhead. They fit rigid frames and 1958–1964 swingarm frames, but will not work with the large FLH battery. The muffler sets have slider channels on the front and rear pipes, and the drag pipes have one on the rear pipe only. A Paughco #523-3 mounting clamp is included with the muffler sets.

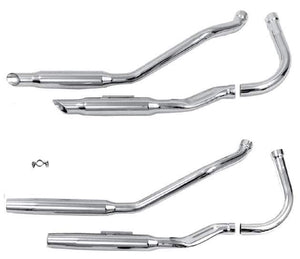

712-40 40"-long Slash Cut drag pipes
712M 38"-long Slash Cut muffler set

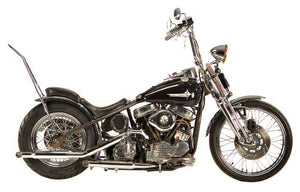

712GM 38"-long Goose Cut muffler set (shown below on bike)
712TM 38"-long Tapered muffler set
523-3 Hanger clamp to install ‘S’ pipe to frame rail on Paughco #’s 712M, 712GM and
712TM pipe sets
421CR Rear heat shield for Paughco #712 series pipe sets (shown below on bike)



Special Notes:
1) Drag pipes are not recommended for use on the street.
2) See page 247 for P-clamps and frame rail clamps to install these pipe sets.
3) See pages 349-353 for photos of the heat shields for these pipe sets.
