FX Model Shovelhead Staggered Dual Drag Pipes For Swingarm Frames

Staggered Dual Drag Pipes For Swingarm Frame FX Model Shovelheads
These drag pipe sets were designed for Shovelhead 4-speed FX models with kick or electric start and a swing-out kicker arm. The 40"-long drag pipes are equipped with slider channels so that you can use a Paughco #718B hanger bracket (sold separately) for a clean installation. Heat shields for the front and rear pipes are highly recommended.


2"-DIAMETER DRAG PIPES

730E2IN40 40"-long Slash Cut drag pipes (use a Paughco #718B hanger bracket to install) not shown


1-3/4"-DIAMETER DRAG PIPES

730E 34"-long Slash Cut drag pipes (use Paughco #725D clamps to install)
730EA 34"-long Goose cut drag pipes (use Paughco #725D clamps to install)
730E40 40"-long Slash Cut drag pipes with slider channels (use a Paughco #718B hanger bracket to install)
730EA40 40"-long Goose Cut drag pipes with slider channels (use a Paughco #718B hanger bracket to install) not shown

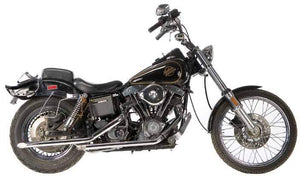

430F Front heat shield for Paughco #730E series pipe sets (shown on bike)
430ER Rear heat shield for Paughco #730E series pipe sets (shown on bike)
718B Hanger bracket for Paughco #730E series pipe sets



Special Notes:
1) Drag pipes are not recommended for use on the street.
2) See page 247 for P-clamps and frame rail clamps to install these pipe sets.
