Evolution Softail Headpipe Sets And Shotgun Exhaust Systems For 1984 - 1999

1-3/4" Headpipe Sets And Shotgun Exhaust Systems For 1984-1999 Evolution Softails
Three distinctly different styles to choose from.

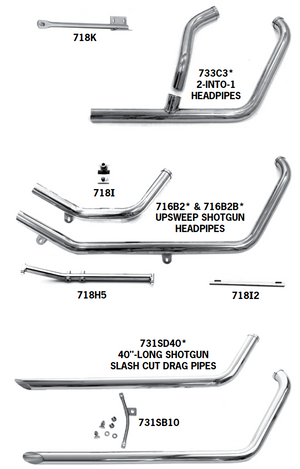

2-INTO-1 HEADPIPE SET
For use with a tailpipe extension or universal muffler on all 1984–1999 Softails, including floorboard models.

733C3* Headpipes ONLY. Use Paughco #718K hanger bracket to install (sold separately)
718K Hanger bracket for #733C3 pipe set
431SF Front heat shield for Paughco #733C3 pipe set (not shown)
433CF Low front heat shield for Paughco #733C3 pipe set (not shown)
433C3R Rear heat shield for Paughco #733C3 pipe set (not shown)


UPSWEEP SHOTGUN HEADPIPE SETS
For use with tailpipe extensions or universal mufflers on all 1984  –  1999 Softails, including floorboard models. The Paughco #716B2 front pipe bolts to the stock H-D mounting bracket, while the #716B2B front pipe bolts to the included 718H5 mounting bracket. The rear pipes on both sets attach to the included 718I mount that bolts onto the
rear passenger footpeg location. A 718I2 strap is also included with both sets to join the front and rear pipes.

716B2* Headpipes for 1984–1994 models
716B2B* Headpipes for 1995–1999 models
718I Replacement hanger bracket for rear pipe on Paughco #’s 716B2 and 716B2B pipe sets (mounts to footpeg)
718I2 Replacement mounting strap for Paughco #’s 716B2 and 716B2B pipe sets
718H5 Replacement hanger bracket for front pipe on Paughco #716B2B pipe set
431SF Front heat shield for Paughco #’s 716B2 and 716B2B pipe sets (not shown)
416B2R Rear heat shield for Paughco #’s 716B2 and 716B2B pipe sets (not shown)


SHOTGUN EXHAUST SYSTEM

731SD40* 40"-long Slash Cut drag pipes (includes a #731SB10 hanger bracket)
731SB10 Replacement hanger bracket kit for Paughco #731SD40 pipe set
431SF Front heat shield for Paughco #’s 731SD40 pipe set
431SDR Rear heat shield for Paughco #’s 731SD40 pipe set


* NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Special Notes:
1) Drag pipes are not recommended for use on the street.
2) See pages 349-353 for photos of the heat shields for these pipe sets.
