1¼" Constant-Diameter Apehangers

These ‘Apes’ are made specifically for the H-D models that have come from the factory with stock 1."-diameter handlebars since 2006. They’re made from heavy duty .120"-wall heavy-duty steel tubing, and are swaged down to 1" in the control areas to permit the use of 1982-up handlebar controls. Slots are machined into the bars to permit the use of internal wiring, and the throttle side is notched for the 2008-up throttle-by-wire controller. They measure 33-1/2"-wide with a 9" pullback, and have an 10" center width. Available with chrome-plated or black powdercoated finishes.

CHROME.                      BLACK

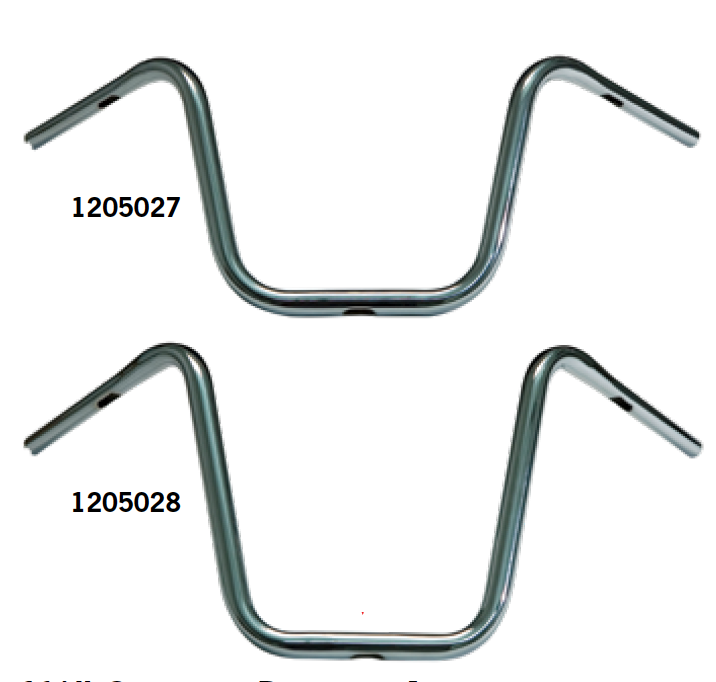

1205026                       1205026B            11"-tall
1205027                       1205027B            14"-tall
1205028                       1205028B            17"-tall



1-1/4" Constant-Diameter Apehangers will fit the following models that were equipped with 1-1/4"-diameter risers from the factory:
FLSTF Fat Boy from 2007 thru 2014
FLSTFB Fat Boy Lo from 2011 thru 2014
FXDF Dyna Fat Bob from 2008 thru 2014
FXDWG Dyna Wide Glide from 2006 thru 2014
FXSB Breakout from 2013 thru 2014
They may also be fitted to many other models when the risers and top clamps on the motorcycle are changed from 1" to 1-1/4".
