1" Apehanger Handlebars

These 1" diameter, Apes come in sizes ranging from 13" to 24" tall. They’re made of top grade materials with .095" to .105" wall thicknesses, and are available undimpled for custom applications, or dimpled for use with 1982-up handlebar controls and your choice of chrome-plated or black powdercoated finishes.

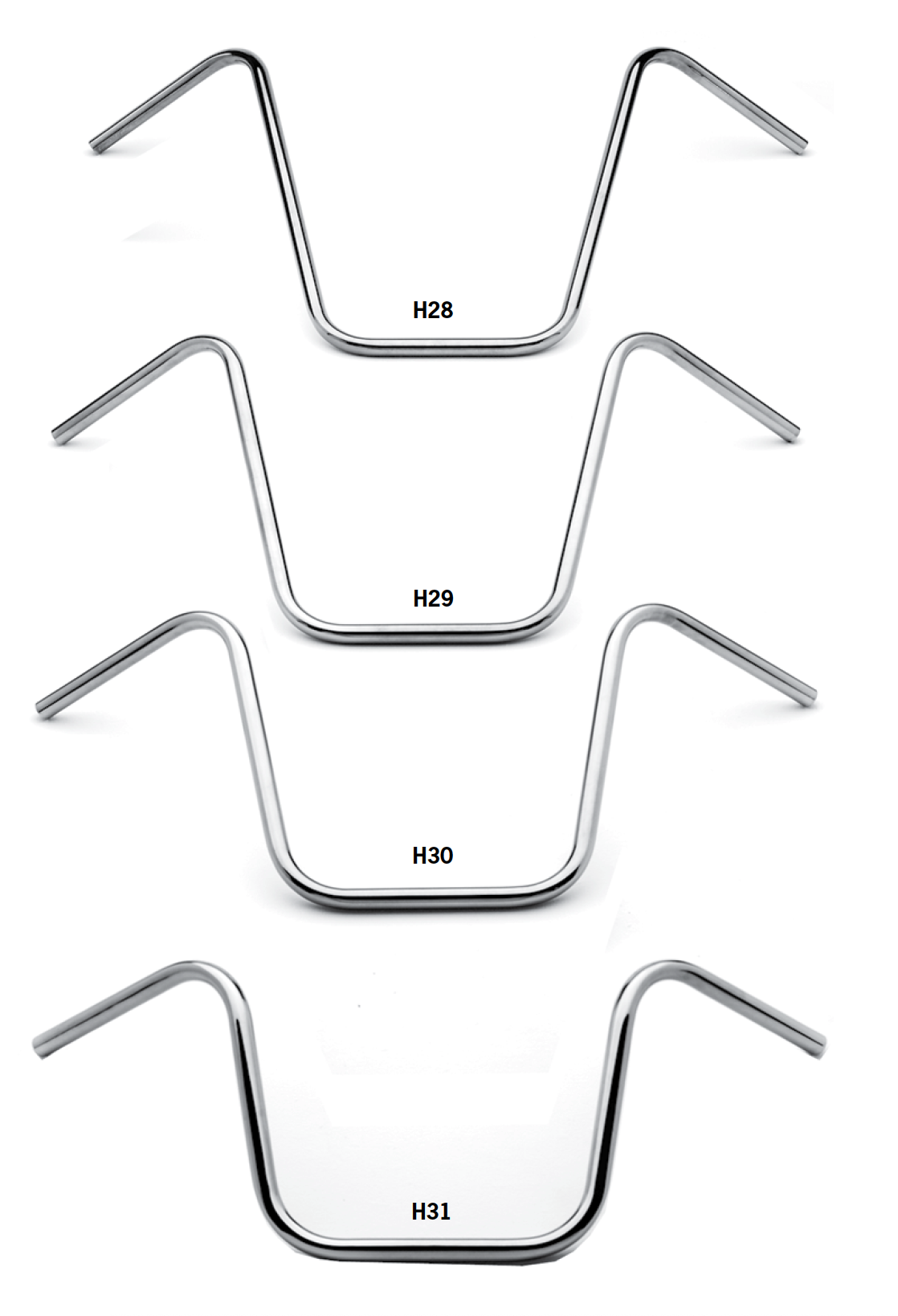

CHROME BARS WITHOUT DIMPLES
All of these handlebars have an 8" center width, and a 7" pullback. They cannot be used with Dog Bone-style risers.

H28 24" tall and 39" end-to-end
H29 20" tall and 37" end-to-end
H30-1 18" tall and 36." end-to-end
H30 16" tall and 36" end-to-end
H31 13" tall and 36" end-to-end


CHROME BARS WITH DIMPLES (NOT SHOWN)
All of these handlebars have an 8" center width, and a 7" pullback. They cannot be used with Dog Bone-style risers.

I28 24" tall and 39" end-to-end
I29 20" tall and 37" end-to-end
I30-1 18" tall and 36." end-to-end
I30 16" tall and 38" end-to-end
I31 13" tall and 36" end-to-end


BLACK BARS WITH DIMPLES (NOT SHOWN)
All of these handlebars have an 8" center width, and a 7" pullback. They cannot
be used with Dog Bone-style risers.

I28B 24" tall and 39" end-to-end
I29B 20" tall and 37" end-to-end
I30-1B 18" tall and 36." end-to-end
I30B 16" tall and 38" end-to-end
I31B 13" tall and 36" end-to-end

Special Notes:
1) Handlebars need 8-1/2" minimum width to work with Dog Bone-style risers
