Trike Conversion Kits For Touring Models

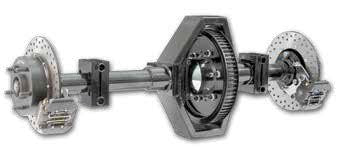

PAUGHCO US-MADE AXLE ASSEMBLIES
The housing is constructed from precision cut and welded 1" x 4"
and 1" x 2½" rectangular tubing, while the axle tubes are made from
23/8"-diameter thick wall tubing. The CNC-machined solid steel gear
housing holds US-made Dana 44 spider gears. Also featured are
extremely strong, automotive-style Timken-type splined wheel hubs.
The brakes are black Wilwood two-piston calipers and the two-piece
11.09"-diameter rotors have an offset hat. Assemblies are shipped
with a gloss black powdercoated finish, and measure 41⁵⁄₈ hub-to-hub.
They use 15" x 6" wheels with a 2¾" backspace, and GM/Chevy
12mm x 1.5mm pitch lug nuts (sold separately – see below).
PTA-1= Axle assembly with 1½"-wide, 70-tooth pulley
for 1993–2003 models
PTA-2= Axle assembly with 1¹⁄₈"-wide, 70-tooth pulley
for 2004–2006 models
PTA-9= Axle assembly with 1¹⁄₈"-wide, 66-tooth pulley
for 2007–2008 models
PTA-12= Axle assembly with 68-tooth, 1¹⁄₈"-wide pulley
for 2009–2015 models
Axle Installation Notes: The ABS brake system must be removed
on models so equipped, before beginning installation. When installing
a PTA-9 on 2007–2008 models with a 1"-wide rear drive belt,
or a PTA-12 on 2009–2015 models with a 1"-wide rear drive belt,
we strongly recommend that you change the belt to a 1¹⁄₈"-wide,
139-tooth rear drive belt (OEM 40024-04). See catalog page 24.

RAKED TRIPLE TREES
Specially-made top and bottom triple trees with an extra 6° of rake
to increase stability when converting your two-wheeler to a trike.
Made to perfectly replace the stock triple trees. Sold in sets.
02-330HD Fits 1993–2013 FLHT Touring models
02-335 Fits 1994–2013 Road King and Road Glide

HYDRAULIC STEERING DAMPENER KITS
Specially-made steering dampener kitted with mounting brackets
and hardware. The kits include an adjustable dampener with seven
different resistance settings to help stop unwanted fork wobbles.
17-160 Fits 1993–2014 FLHT Touring models
17-163 Fits 1994–2014 Road King and Road Glide

PAUGHCO 15" TRIKE RIMS AND ACCESSORIES
These US-made 15" x 6" automotive-style steel rims are a low cost
way to get your trike on the road without emptying your wallet. They
have a GM/Chevy 5 x 4.75" bolt pattern and use 195/65R x 15" tires.
06-202 Unpainted rim (2¾" backspace) sold each
06-202B Black rim (2¾" backspace) sold each
06-202C Chrome rim (2¾" backspace) sold each
PTA-LN Wheel lug nuts (pack of 10)
06-202HC Chrome ‘Baby Moon’ hub cap (sold each)
06-202TR Chrome wheel trim ring (sold each)

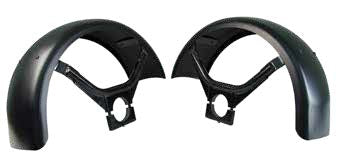

PAUGHCO TRIKE FENDER KITS FOR US-MADE AXLES
They measure 8½"-wide and 42"-long and clamp onto the axle tube
housings. The fenders mount to the support brackets with buttonhead
screws, but can easily be welded in place and smoothed over
if desired. They’re available in raw steel or with a black powdercoat
finish. May only be used with 195/65R x 15" tires. Sold in sets.
PTF-1 Raw steel finish for US-made axle
PTF-1B Black powdercoat finish for US-made axle

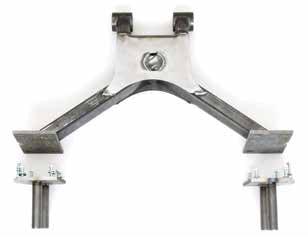

SADDLEBAG RELOCATION KITS FOR US-MADE AXLES
These brackets and hardware are needed to raise the stock fiberglass
saddlebags when you want to maintain the stock appearance
and retain all the cargo capacity that came on your original vehicle.
153T-PB Fits 1993–2008 FLT/FLHT Touring models
153T-PBL Fits 2009–2015 FLT/FLHT Touring models
