Trike Conversion Kits For Sportster Models

Paughco Trike Conversion Kits For Sportster Models

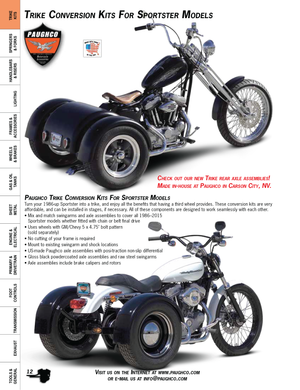

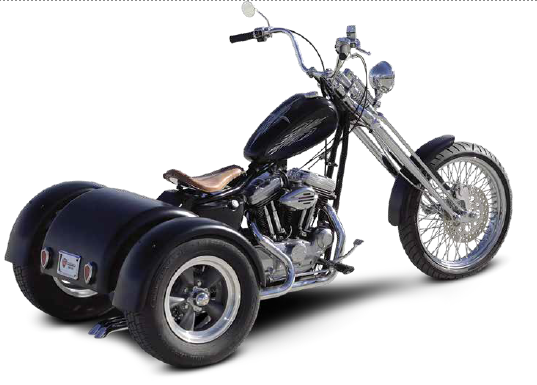

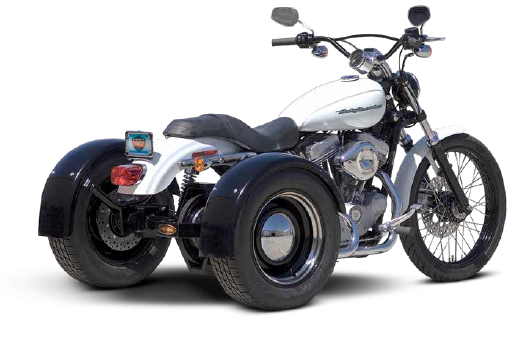

Turn your 1986-up Sportster into a trike, and enjoy all the benefits that having a third wheel provides. These conversion kits are very
affordable, and can be installed in stages, if necessary. All of these components are designed to work seamlessly with each other.
• Mix and match swingarms and axle assemblies to cover all 1986–2015
Sportster models whether fitted with chain or belt final drive
• Uses wheels with GM/Chevy 5 x 4.75" bolt pattern
(sold separately)
• No cutting of your frame is required
• Mount to existing swingarm and shock locations
• US-made Paughco axle assemblies with posi-traction non-slip differential
• Gloss black powdercoated axle assemblies and raw steel swingarms
• Axle assemblies include brake calipers and rotors

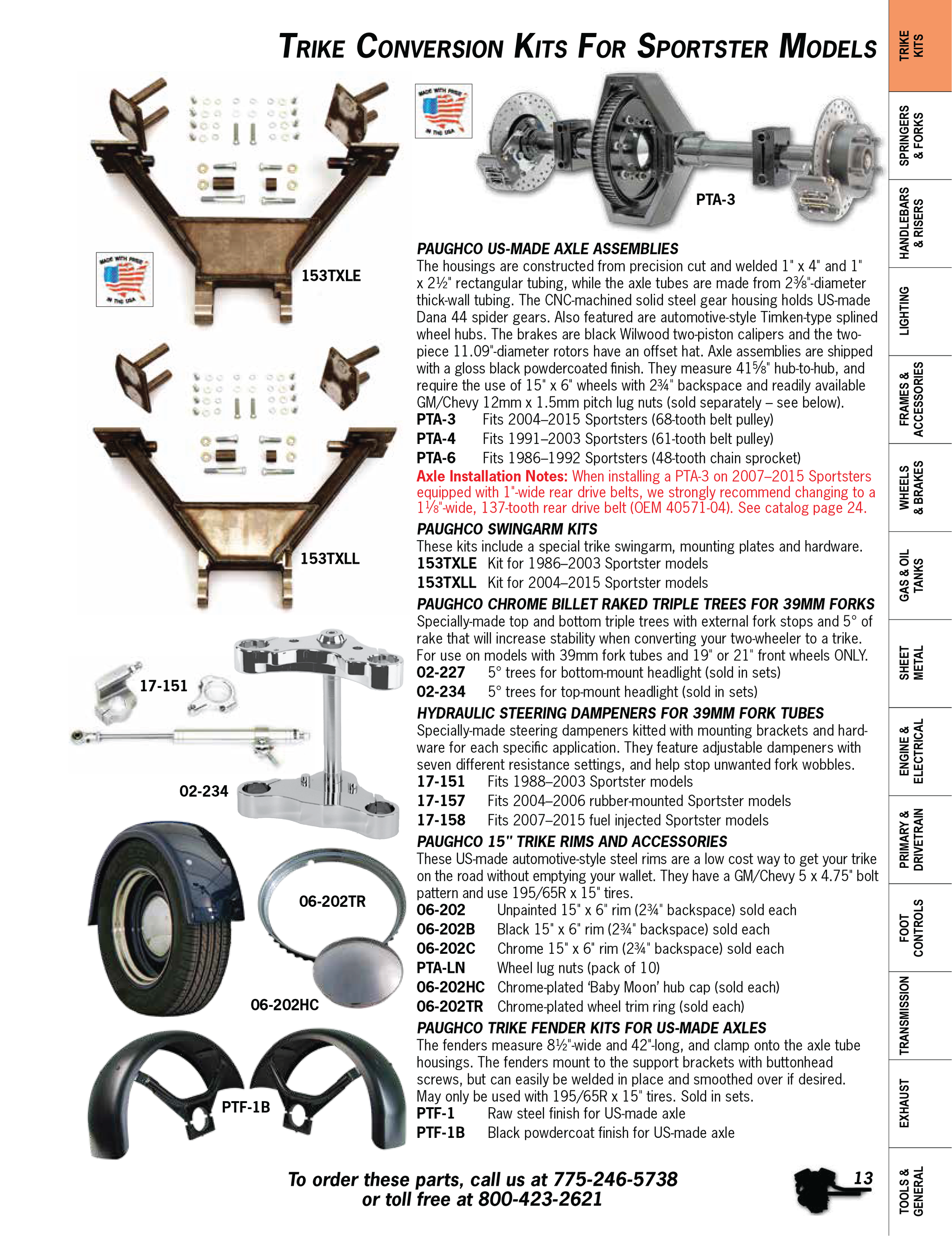

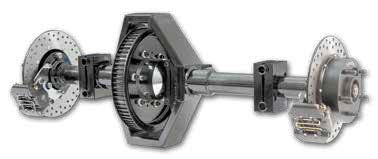

PAUGHCO US-MADE AXLE ASSEMBLIES
The housings are constructed from precision cut and welded 1" x 4" and 1"
x 2½" rectangular tubing, while the axle tubes are made from 23/8"-diameter
thick-wall tubing. The CNC-machined solid steel gear housing holds US-made
Dana 44 spider gears. Also featured are automotive-style Timken-type splined
wheel hubs. The brakes are black Wilwood two-piston calipers and the twopiece
11.09"-diameter rotors have an offset hat. Axle assemblies are shipped
with a gloss black powdercoated finish. They measure 415/8" hub-to-hub, and
require the use of 15" x 6" wheels with 2¾" backspace and readily available
GM/Chevy 12mm x 1.5mm pitch lug nuts (sold separately – see below).
PTA-3 Fits 2004–2015 Sportsters (68-tooth belt pulley)
PTA-4 Fits 1991–2003 Sportsters (61-tooth belt pulley)
PTA-6 Fits 1986–1992 Sportsters (48-tooth chain sprocket)
Axle Installation Notes: When installing a PTA-3 on 2007–2015 Sportsters
equipped with 1"-wide rear drive belts, we strongly recommend changing to a
11/8"-wide, 137-tooth rear drive belt (OEM 40571-04). See catalog page 24.

PAUGHCO SWINGARM KITS
These kits include a special trike swingarm, mounting plates and hardware.
153TXLE Kit for 1986–2003 Sportster models
153TXLL Kit for 2004–2015 Sportster models

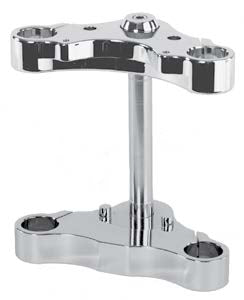

PAUGHCO CHROME BILLET RAKED TRIPLE TREES FOR 39MM FORKS
Specially-made top and bottom triple trees with external fork stops and 5° of
rake that will increase stability when converting your two-wheeler to a trike.
For use on models with 39mm fork tubes and 19" or 21" front wheels ONLY.
02-227 5° trees for bottom-mount headlight (sold in sets)
02-234 5° trees for top-mount headlight (sold in sets)

HYDRAULIC STEERING DAMPENERS FOR 39MM FORK TUBES
Specially-made steering dampeners kitted with mounting brackets and hardware
for each specific application. They feature adjustable dampeners with
seven different resistance settings, and help stop unwanted fork wobbles.
17-151 Fits 1988–2003 Sportster models
17-157 Fits 2004–2006 rubber-mounted Sportster models
17-158 Fits 2007–2015 fuel injected Sportster models

PAUGHCO 15" TRIKE RIMS AND ACCESSORIES
These US-made automotive-style steel rims are a low cost way to get your trike
on the road without emptying your wallet. They have a GM/Chevy 5 x 4.75" bolt
pattern and use 195/65R x 15" tires.
06-202 Unpainted 15" x 6" rim (2¾" backspace) sold each
06-202B Black 15" x 6" rim (2¾" backspace) sold each
06-202C Chrome 15" x 6" rim (2¾" backspace) sold each
PTA-LN Wheel lug nuts (pack of 10)
06-202HC Chrome-plated ‘Baby Moon’ hub cap (sold each)
06-202TR Chrome-plated wheel trim ring (sold each)

PAUGHCO TRIKE FENDER KITS FOR US-MADE AXLES
The fenders measure 8½"-wide and 42"-long, and clamp onto the axle tube
housings. The fenders mount to the support brackets with buttonhead
screws, but can easily be welded in place and smoothed over if desired.
May only be used with 195/65R x 15" tires. Sold in sets.
PTF-1 Raw steel finish for US-made axle
PTF-1B Black powdercoat finish for US-made axle
